Add a web service call
This exercice is to call a web service with the X509 certificate.
The web service is PlatformIntegrationConsumerTest. The documentation is available on http://soa.smals.be/registry/uddi/bsc/web/browse/serviceDetail?serviceKey=uddi:be:fgov:rsz:platformintegrationconsumertest:v1.
Add dependency
The SOA team provide a client jar for each web service.
<dependency>
<groupId>be.smals.serviceclient</groupId>
<artifactId>serviceclient-platformintegrationconsumertest</artifactId>
<version>1.1.0</version>
</dependency>
And I add the API jboss for the web service.
<dependency>
<groupId>org.jboss.ws</groupId>
<artifactId>jbossws-api</artifactId>
<version>1.0.3.Final</version>
<scope>provided</scope>
</dependency>
URL management

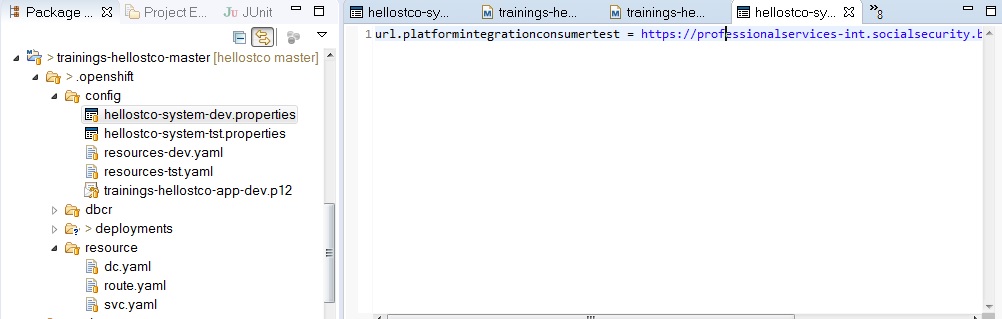

For an application, you have the different values for test, acceptation and production.You can put this value in .openshift/config/hellostco-system-dev.properties.
The URL of the web service is http://soa.smals.be/registry/uddi/bsc/web/browse/serviceDetail?serviceKey=uddi:be:fgov:rsz:platformintegrationconsumertest:v1.
Add in properties file :
url.platformintegrationconsumertest = https://professionalservices-int.socialsecurity.be/PlatformIntegrationConsumerTest/v1

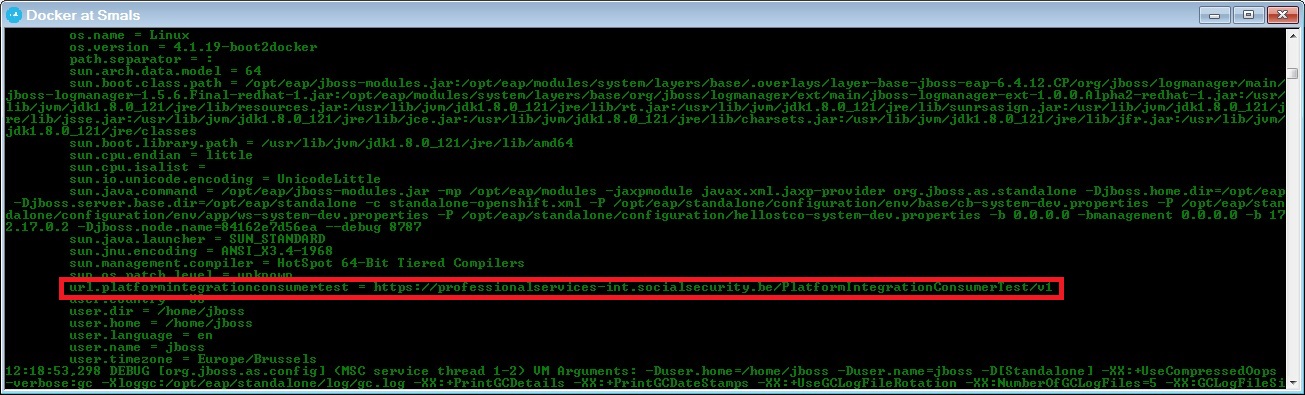

This variable is loaded by jboss when the server start.
And you can use this key in your web.xml.
<env-entry>
<env-entry-name>ws.platformintegrationconsumertest.endpointaddress</env-entry-name>
<env-entry-type>java.lang.String</env-entry-type>
<env-entry-value>${url.platformintegrationconsumertest}</env-entry-value>
</env-entry>
Security

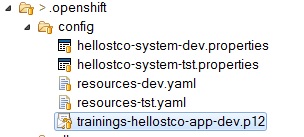

You must use a p12 certificate. This certificate is different per environment.
For local and test, you must use this \\port-stco\share\OpenshiftAdvanced.
Add the configuration in the resources-dev.yaml.
keyStores:
- type: PKCS12
filename: trainings-hellostpih-app-dev.p12
keystorepassword: password
alias: security:hellopih
privatekeypassword: password
description:
client-config-name: hellopih-Client-Config
Call web service
Add a call of the web service in SayingBean.@Resource(name= "ws.platformintegrationconsumertest.endpointaddress")
String endpointAddressPlatformIntegrationConsumerTest;
...
private PlatformIntegrationConsumerTestPortType getPort() {
if (platformIntegrationConsumerTestPortType == null) {
try {
URL wsdlUrl = getClass().getResource("/META-INF/be/socialsecurity/platformintegrationconsumertest/v1/PlatformIntegrationConsumerTest-v1.wsdl");
QName serviceQname = new QName("http://socialsecurity.be/platformintegrationconsumertest/v1", "PlatformIntegrationConsumerTestService");
PlatformIntegrationConsumerTestService service = new PlatformIntegrationConsumerTestService(wsdlUrl, serviceQname);
PlatformIntegrationConsumerTestPortType port = service.getPlatformIntegrationConsumerTestSOAP11(new ClientConfigFeature(null, "hellopih-Client-Config", true));
((BindingProvider) port).getRequestContext().put(ENDPOINT_ADDRESS_PROPERTY, endpointAddressPlatformIntegrationConsumerTest);
platformIntegrationConsumerTestPortType = port;
} catch (Exception e) {
this.logger.error("Exception while initializing PlatformIntegrationConsumerTestPortType", e);
throw new RuntimeException("Exception while initializing PlatformIntegrationConsumerTestPortType", e);
}
}
return platformIntegrationConsumerTestPortType;
}
public String saying() {
IntegrationTestMessage integrationMessage = new IntegrationTestMessage();;
integrationMessage.setMessage("trainings openshfift X609 call test");
XMLGregorianCalendar now = getCurrentTimestamp();
integrationMessage.setTimestamp(now);
IntegrationTestMessage response = null;
try {
response = getPort().checkAccessControl(integrationMessage);
} catch (SystemError e) {
this.logger.error("Exception while calling PlatformIntegrationConsumerTestPortType", e);
throw new RuntimeException("Exception while calling PlatformIntegrationConsumerTestPortType", e);
}
return "message from soa integration test ws: " + response.getMessage();
}
/**
* @return
*/
private XMLGregorianCalendar getCurrentTimestamp() {
GregorianCalendar gregorianCalendar = new GregorianCalendar();
DatatypeFactory datatypeFactory;
XMLGregorianCalendar now = null;
try {
datatypeFactory = DatatypeFactory.newInstance();
now = datatypeFactory.newXMLGregorianCalendar(gregorianCalendar);
} catch (DatatypeConfigurationException e) {
this.logger.error("Exception while getCurrentTimestamp", e);
throw new RuntimeException("Exception while getCurrentTimestamp", e);
}
return now;
}
Local setup Jboss

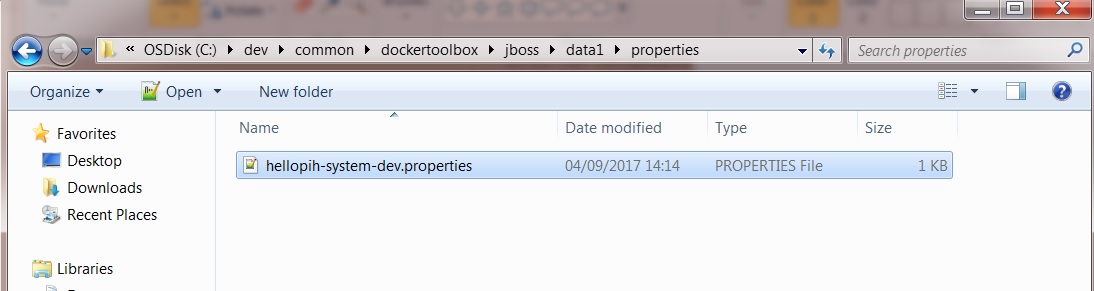

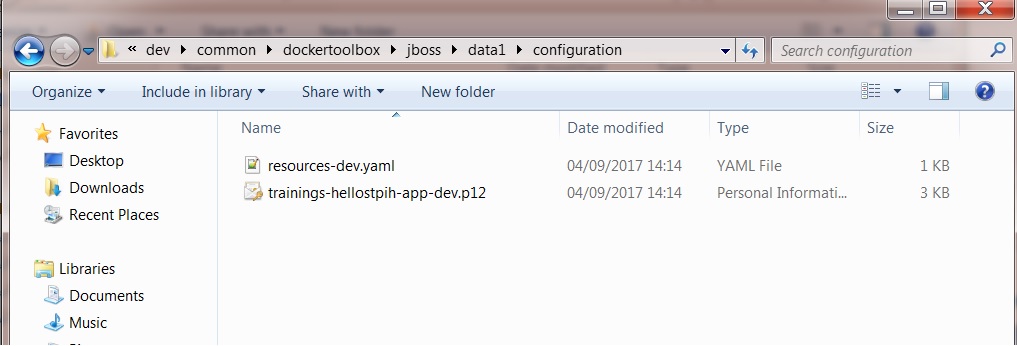

In local JBoss, you must use the mavenplugins-dockerrun to copy the file (p12, properties and yaml).
